能源数据集成系统(EDIS)
概述

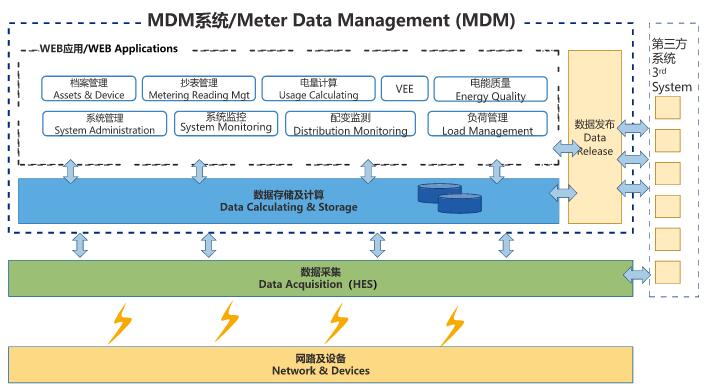

能源数据集成系统(EDIS,Energy Data Integration System),即计量数据管理系统(MDMS,Metering Data Management System),对智能计量系统的大量数据进行长期的数据存储和管理,主要从AMI(高级计量基础结构)中前置采集程序(HES,Head End System)导入计量数据和事件。

EDIS提供数据发布适配器,为其他系统提供校验后的计量数据以做下一步的分析。除了这种通用功能之外,EDIS还可以提供远程连接/断开电表、停电管理等应用功能。

Our Energy Data Ilntegration System (EDIS), which is a meter data management system(MDMS), performs long term data storage and management for the vast quantties of data delivered by smart metering systems.This data consists primarily of usage data and events that are imported from the head end servers that manage the data collection in AMl (Advanced metering infrastructure) systems.

EDlS provide adapters betweenEDlS and the multiple destinations that rely on meter data. Besides this common functionality, our advanced EDlS may provide facility for remote connectldisconnect of meters, power status verification, power restoration verification and on demand read of remote meters.

特点
  • 在充分满足国内公共事业公司需求外,还适用于海外市场公共事业公司AMI项目的建设需求。
    Follow the requirements of oversea utilities AMl project
  • 部署模式:EDIS可以与HES集成部署,或者根据安全保护要求单独部署在不同的安全领域。
    Deployed Mode:EDlS can be integrated and deployed with the HES system, or separately deployed in different security areas according to security protection requirements.
  • 提供丰富而统一的数据共字适配器,用于与HES、CIS、OMS等其他系统进行数据交换。
    Rich and unified adapter for data exchange with HES,CIS,OMS or other systems.
  • 其他增值功能,如负荷管理、能源质量管理。
    Value added features such as Load Management,Energy Quality Management.
主要功能


(1)获取与存储所有电表数据。
Store all meter reads as the system of record

(2)验证电表数据与异常事件的准确性。
Validate the accuracy and performance of meter reads and outage event data

(3)使用多维分析优化数据校验与估算。
lmprove estimation and validation using multi-dimensional analytics

(4)在EDIS、AMR/AMI数据库和其他系统之间同步数据。
Synchronize data between EDIS,AMR/AMl databases and other systems.
